MCX-G2-CTRL-24, MCX Gen 2 Controller

Store home > Audio Video > Video Extenders > SDVoE AV over IP > MCX Gen 2 Controller

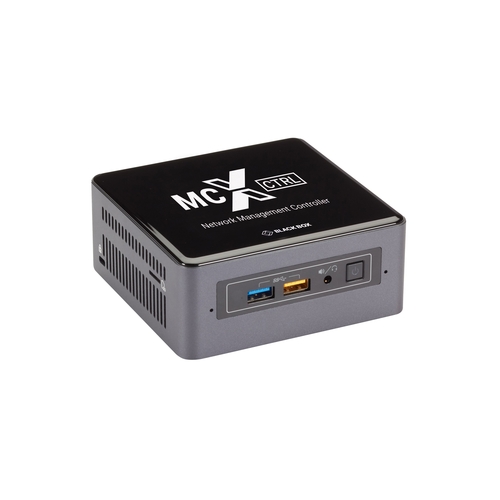

Photo may vary from actual product		MCX Gen 2 Controller Get complete control of your MCX AVoIP system Get complete control of your entire MCX AVoIP system Security that protects against unauthorized content viewing Real-time status monitoring Full asset tracking of devices Automate events and schedule preset commands with ease Adheres to SLA standards

	Product				Code


Controller
	12 endpoints	MCX Gen 2 Controller - Up to 12 Endpoints	MCX-G2-CTRL-12
	24 endpoints	MCX Gen 2 Controller - Up to 24 Endpoints	MCX-G2-CTRL-24
	48 endpoints	MCX Gen 2 Controller - Up to 48 Endpoints	MCX-G2-CTRL-48
	120 endpoints	MCX Gen 2 Controller - Up to 120 Endpoints	MCX-G2-CTRL-120
	250 endpoints	MCX Gen 2 Controller - Up to 250 Endpoints	MCX-G2-CTRL-250
	500 endpoints	MCX Gen 2 Controller - Up to 500 Endpoints	MCX-G2-CTRL-500
	unlimited endpoints	MCX Gen 2 Controller - Unlimited Endpoints	MCX-G2-CTRL-UL End of Life

EOL Indicated products will be discontinued once remaining stock is depleted. Please call our sales department for more information or alternative items.

Accessories

	Product	Code

MCX S7 4K60 Network AV Encoder or Decoder - HDMI 2.0, HDCP 2.2, 10-GbE Copper
	4K60 Network AV Decoder - HDCP 2.2, HDMI 2.0, 10-GbE Copper - HDMI 2.0, Decoder	MCX-S7-DEC
	4K60 Network AV Encoder - HDCP 2.2, HDMI 2.0, 10-GbE Copper - HDMI 2.0, Encoder	MCX-S7-ENC
MCX S9C 4K60 Network AV Encoder or Decoder - HDMI 2.0, Scaling, 10-GbE Copper
	4K60 Network AV Decoder - HDMI 2.0, Scaling, 10-GbE Copper - HDMI 2.0, Decoder	MCX-S9C-DEC
	4K60 Network AV Encoder - HDMI 2.0, Scaling, 10-GbE Copper - HDMI 2.0, Encoder	MCX-S9C-ENC
MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber
	MCX S9 4K60 Network AV Decoder - HDMI 2.0, Scaling, USB, 10-GbE Copper or Fiber - HDMI 2.0, Decoder	MCX-S9-DEC
MCX S7 4K60 Network AV Decoder or Encoder - HDCP 2.2, HDMI 2.0, 10-GbE Fiber
	4K60 Network AV Decoder - HDCP 2.2, HDMI 2.0, 10-GbE Fiber - HDMI 2.0, Decoder	MCX-S7-FO-DEC
	4K60 Network AV Encoder - HDCP 2.2, HDMI 2.0, 10-GbE Fiber - HDMI 2.0, Encoder	MCX-S7-FO-ENC

In-depth info

Technical data

The MCX Gen 2 Controller is an all-in-one SDVoE/AVoIP network controller and manager for the MCX AVoIP system. The controller features an easy-to-use, intuitive user interface, and it makes setting up and managing your MCX AVoIP system a breeze. The Gen 2 Controller also offers strong security that ensures your data and content are always protected.

Simplified Setup
The MCX Gen 2 Controller makes setting up your AVoIP system easy and features a CSV import capability to accommodate large deployments. You can also assign icons to both source and display endpoints to assist in identification.

Complete Control UI
Create browser-based interfaces to control your projects' essential functions with our "no programming" approach to GUI design. Control matrix, video wall, and multiview functions as well as external devices like displays and media players. You can also create no-touch UIs with our pin coded QR system. This makes setting up touchpanels and control boards simple and cost-free.

System Design Testing
With the controller, you get granular testing of all encoder and decoder functionality as well as any attached IR or RS-232 devices. It also gives you reboot and reset options for individual endpoints or groups of endpoints.

Status Monitoring
The Gen 2 Controller provides real-time data on encoder and decoder operations plus insight into source and display operations.

Extensive Firmware Management
The controller features extensive firmware management that provides high-level admin access to individual endpoints or groups of endpoints.

Strong Security
Individual encrypted encoder and decoder pairings protect against unauthorized content viewing. Additional permission settings can allow or disallow routing.

EDID Management
The MCX Gen 2 Controller offers flexible EDID handling with full reporting of monitor information. And the EDID validation process ensures the integrity of information.

Automate Events
Automate actions like turning on displays upon source detection or initiating room off procedures after source disconnection. You can even combine the controller with multiple encoders to create a priority auto switching system.

Schedule Preset Commands
Schedule any number of preset commands for unattended operation. From ensuring all displays are turned off at end of day to changing source content on the lobby video wall, the possibilities are endless.

Track Your AV Devices
Get full asset tracking of devices. The MCX Gen 2 Controller logs the entire history of every device it manages, no matter the length of service.

SLA Adherence
Time-stamped logging of devices to meet system integrator SLA commitments. You can create reports that show when and how long devices were out of service as well.

Advanced Analytics
Better understand AV behavior by studying user AV interactions. Create reports to show when AV was used, how long it was used, and even how long it took to start AV in any meeting.
