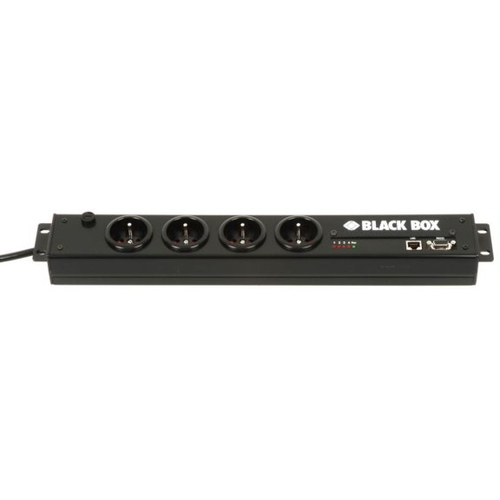

Power Switch Cabinet is an extension lead that enables you, through an Ethernet 10Base-T network, to switch on or off the power supply of any electric device.
The built-in mini Web server allows individual control of the four sockets, using a browser.
Its serial interface can be used to control the power outlets over a Terminal connection (KVM Switch, console server...) or to trigger a soft shutdown of a server with shutdown capabilities. An internal Real Time Clock enables to trigger scheduled actions and timestamp all events (logs, SNMP traps and Syslog events).
Power Switch PSE544 is more than a simple power strip. It offers IP device monitoring with automatic reboot function in case of lock-up.
It supports the HTTP, DHCP, Syslog, SNMP and SNTP protocols.
Connections
Power in: (1) country-specific power plug
Power out: (4) country-specific power outlets, max 10A total
Serial: (1) RS232 DB9 F
Network: (1) RJ45 F 10/100 Mbps Ethernet
Engine
Port command and control: serial or over IP (HTTP, SNMP)
Features: IP device monitoring with auto reboot option, delayed reboot, scheduler — on/off/power cycle (internal RTC with SNTP synchronization option), software server shutdown (APC compatible), system log
Management
Indicators
(1) LED Power ON/activity
(4) LED outlet ON
Operation
Users: (1) admin
Security: Password, configurable HTTP port, automatic logoff (timeout)
SNMP: send traps on critical status
Physical and environmental
Operating temperature: 0 – 40 °C
Humidity: 10 – 80% RH, non-condensing
Dimensions (W x D x H): 478 x 73 x 49 mm
Weight: 1kg
(1) extension lead, 19" rack mountable,
(1) serial cable SUB-D 9 points male / female,
(1) RJ45 cable, male / male.
CD including this user guide and the Power Switch Finder program.
