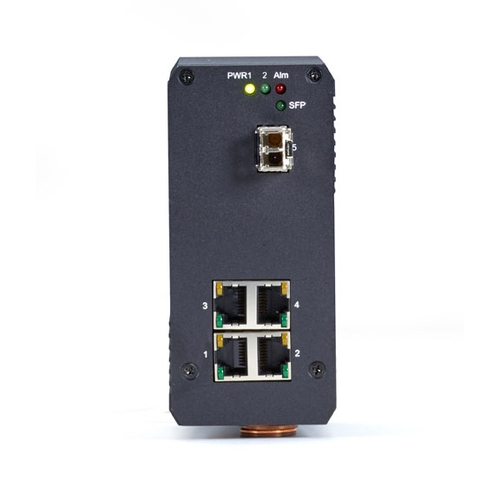

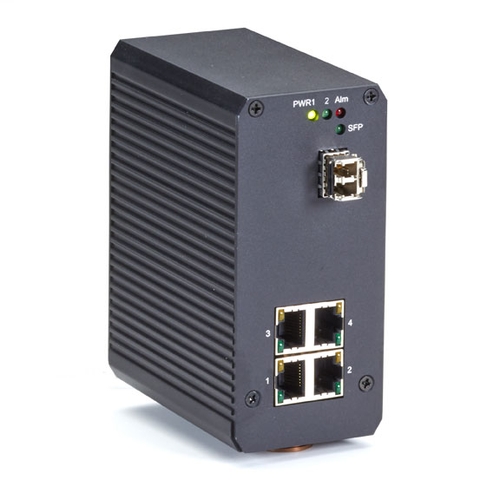

LGH1000 Series Hardened Ethernet Switch
Photo may vary from actual product
LGH1000 Series Hardened Ethernet Switch
LGH1000 Series Hardened Ethernet Switch

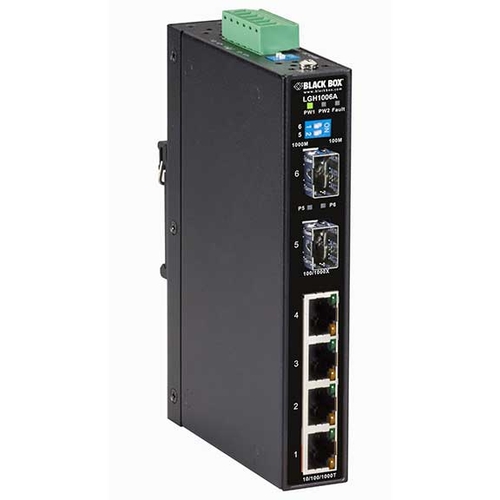

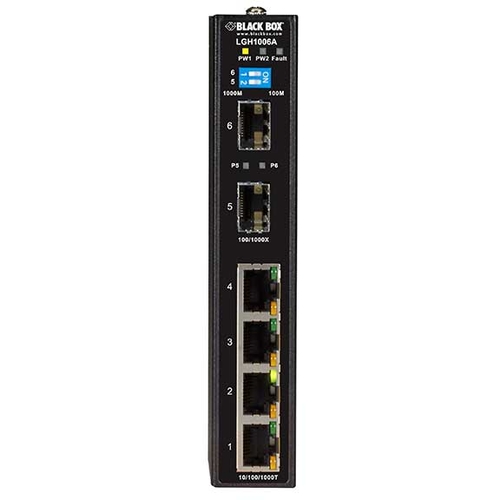

LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply
LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply
LGH1006A: -40 to +70° C, (4) 10/100/1000M RJ45 + (2) SFP-slots, Without power supply


LGH1000 Series Hardened Ethernet Switch


SFP fiber uplink extends your network in harsh environments.


  • Rated for extreme temperatures.
  • IP31 metal enclosure for use in harsh indoor environments.

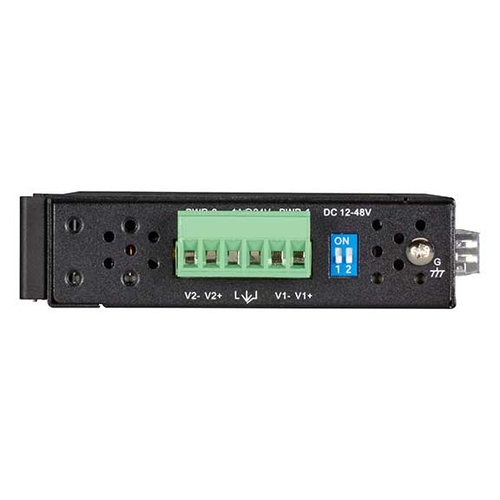

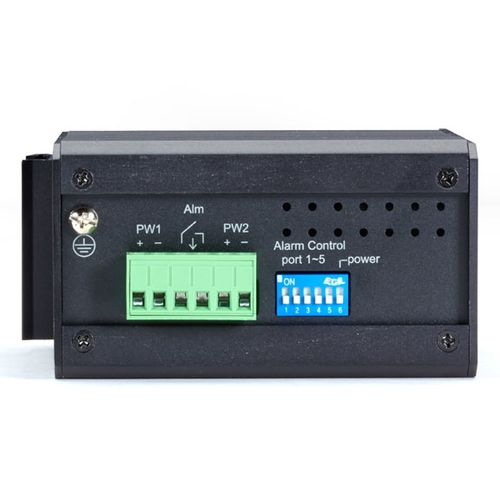

  • Dual DC power inputs for redundant power.
  • SFP port enables single-mode or multimode Gigabit fiber uplinks over long distances.
  • Provides four 10/100/1000Mbps RJ-45 ports and one or two Gigabit SFP slot(s).
  • Use in harsh applications, including factories, oil/gas fields, military vehicles/ships, HVAC controls, security and surveillance, and more.
  • Built-in smart alarm warns of power or port failures.
  • LEDs indicate power, alarm, speed, and link/activity.
  • DIN rail or wall mount.
  • Warranty: 1 Year Double Diamond™ Warranty (Standard)

Share |
  Product       Code
-40 to +70° C
(4) 10/100/1000M RJ45 + (2) SFP-slots

Without power supply
  LGH1000 Series Hardened Ethernet Switch
LGH1000 Series Hardened Ethernet Switch
  LGH1006A
Note: This industrial switch does not include a power supply. Use it with the MDR-40-12, MDR-40-24, SDR-120-48, or the SDR-240-48.

Accessories

  Product     Code

  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1310nm TX/1550nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP421
  SFP, 1250-Mbps, Extended Temperature, LC Simplex - 10km, LC, Singlemode SSF 1550nm TX/1310nm RX
SFP, 1250-Mbps, Extended Temperature, LC Simplex
  LFP420
  SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m - 850nm MM LC, 550m
SFP, 1250-Mbps, Extended Temp., 850-nm MM LC, 550-m
  LFP411
  SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km - 1310-nm MM, 2km
SFP, 1250-Mbps, Extended Temp., 1310-nm MM LC, 2-km
  LFP412
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 10-km
  LFP413
  SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 40-km - 1310nm SM LC, 40km
SFP, 1250-Mbps, Extended Temp., 1310-nm SM LC, 40-km
  LFP414
  DIN Rail Power Supplies - 24VDC, 120w
DIN Rail Power Supplies
  SDR-120-24
  DIN Rail Power Supplies - 48VDC, 120w
DIN Rail Power Supplies
  SDR-120-48
  DIN Rail Power Supplies - 48VDC, 240w
DIN Rail Power Supplies
  SDR-240-48
  DIN Rail Power Supplies - 12VDC, 40W
DIN Rail Power Supplies
  MDR-40-12
  DIN Rail Power Supplies - 24VDC, 40W
DIN Rail Power Supplies
  MDR-40-24
  SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m - SerDes
SFP, 1250-Mbps, Extended Temp., SerDes Interface RJ-45, 100-m
  LFP415
  SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m - SGMII
SFP, 1250-Mbps, Extended Temp., SGMII Interface RJ-45, 100-m
  LFP416



Actions
Datasheets
LGH1000 Series Hardened Ethernet Switch Datasheet
Manuals
LGH1000 Series Hardened Ethernet Switch Manual
Quick Starter Guide LGH1006A
